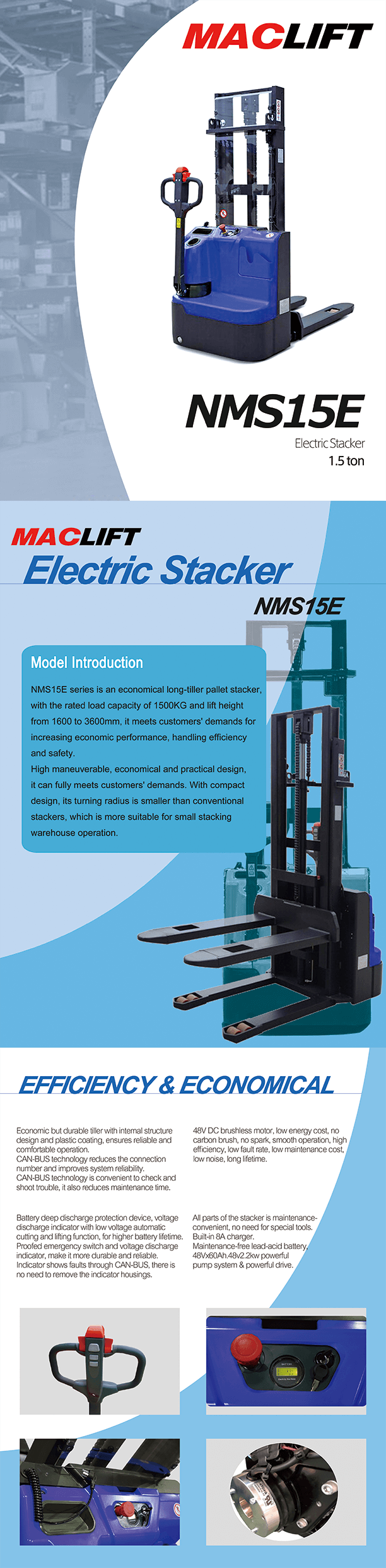

海獅機械最新引進Maclift經濟型系列電動堆高機（電動堆高車/ Electric stacker/ Electric Pallet Stacker）
出產自專注於提供經濟實惠的倉庫產品品牌Maclift。這款經濟型全電動堆高機採用輕盈機身設計，
讓工作人員在各類狹小的倉庫、貨倉及工作台通道等可以處理輕量型的貨物搬運、堆高等倉庫工作。
堆高機系列選型
- 負重能力由1至1.5噸
- 堆高機提升高度由1.6米至3.5米
- 可選跨式底腳以處理雙面卡板
- 更多堆高機選型可向我們的業務代表查詢
堆高機領先優勢
- 堅固的結構
- 電動提升行走：輕鬆完成任務
- 堆高機採用低重心設計：操作更穩定
- 內置式充電機：更便利地進行充電
- 四輪配置行走更穩固
- 密封式防漏油設計
- 使用免維護電池
- 安全停泊制動
- 低離地距離：避免足踝夾傷
海獅機械的優質服務
- 我們為您推薦最合適堆高機型號
- 產品保用承諾
- 專業強大的售後服務團隊
|
NMS15E 1600 |
NMS15E 3600 |
|||
| Drive |
Battery |
|||
| Operator type |
Pedestrian |
|||
| Load Capacity / rated load |
Q |
kg |
1500 |
|
| Load centre distance |
c |
mm |
600 |
|
| Load distance ,centre of drive axle to fork |
x |
mm |
770 |
|
| Wheelbase |
y |
mm |
1258 |
1283 |
| Service weight |
kg |
641 |
782 |
|
| Axle loading, laden front/rear |
kg |
677/1464 |
722/1560 |
|
| Axle loading, unladen front/rear |
kg |
446/195 |
544/238 |
|
| Tires |
Polyurethane (PU) |
|||
| Tire size,front |
Φ x w |
mm |
Φ210×70 |
|
| Tire size,rear |
Φ x w |
mm |
Φ80×70 |
|
| Additional wheels(dimensions) |
Φ x w |
mm |
Φ100×50 |
|
| Wheels,number front/rear(x=driven wheels) |
1x+1/4 |
|||
| Tread, front |
b10 |
mm |
557 |
|
| Tread, rear |
b11 |
mm |
410/525 |
|
| Lowered mast height |
h1 |
mm |
1978 |
2280 |
| Free Lift height |
h2 |
mm |
1510 |
78 |
| Lift |
h3 |
mm |
1515 |
3615 |
| Extended mast height |
h4 |
mm |
1985 |
4005 |
| Height of tiller in drive position min./ max. |
h14 |
mm |
710/1245 |
|
| Height, lowered |
h13 |
mm |
85 |
|
| Overall length |
l1 |
mm |
1806 |
1830 |
| Length to face of forks |
l2 |
mm |
656 |
681 |
| Overall width |
b1 |
mm |
820 |
|
| Fork dimensions |
s/e/l |
mm |
60/180/1150 |
|
| Distance between fork- arms |
b5 |
mm |
570/685 |
|
| Ground clearance, centre of wheelbase |
m2 |
mm |
25 |
|
| Aisle width for pallets 1000X1200 lengthways |
Ast |
mm |
2293 |
2317 |
| Aisle width for pallets 800X1200 lengthways |
Ast |
mm |
2237 |
2261 |
| Turning radius |
Wa |
mm |
1450 |
1474 |
| Travel speed, laden/ unladen |
km/h |
4.4/4.7 |
||
| Lift speed, laden/ unladen |
m/s |
0.105/0.17 |
||
| Lowering speed, laden/ unladen |
m/s |
0.126/0.126 |
||
| Max. gradeability, laden/ unladen |
% |
5/10 |
||
| Service brake |
Electromagnetic |
|||
| Drive motor rating S2 60min |
kW |
0.75 |
||
| Lift motor rating at S3 7.5% |
kW |
2.2 |
||
| Battery acc. to DIN 43531/ 35/ 36 A, B, C, no |
No |
|||
| Battery voltage, nominal capacity K5 |
V/Ah |
4×12/60 |
||
| Battery weight |
kg |
4×20 |
||
| Energy consumption acc. to VDI cycle |
kWh/h |
0.5 |
||
| Type of drive control |
DC speed Control |
|||
| Sound level at driver’s ear acc. to EN 12053 |
dB(A) |
<70 |
||
|
Designation |
Lowered mast height h1 (mm) |
Free lift h2 (mm) |
Lift height h3 (mm) |
Extended mast Height h4 (mm) |
Lift h3+h13 (mm) |
| One stage mast |
2378 |
1910 |
1915 |
2385 |
2000 |
| Two stage mast |
1930 |
78 |
2815 |
3305 |
2900 |
|
2080 |
78 |
3115 |
3605 |
3200 |
