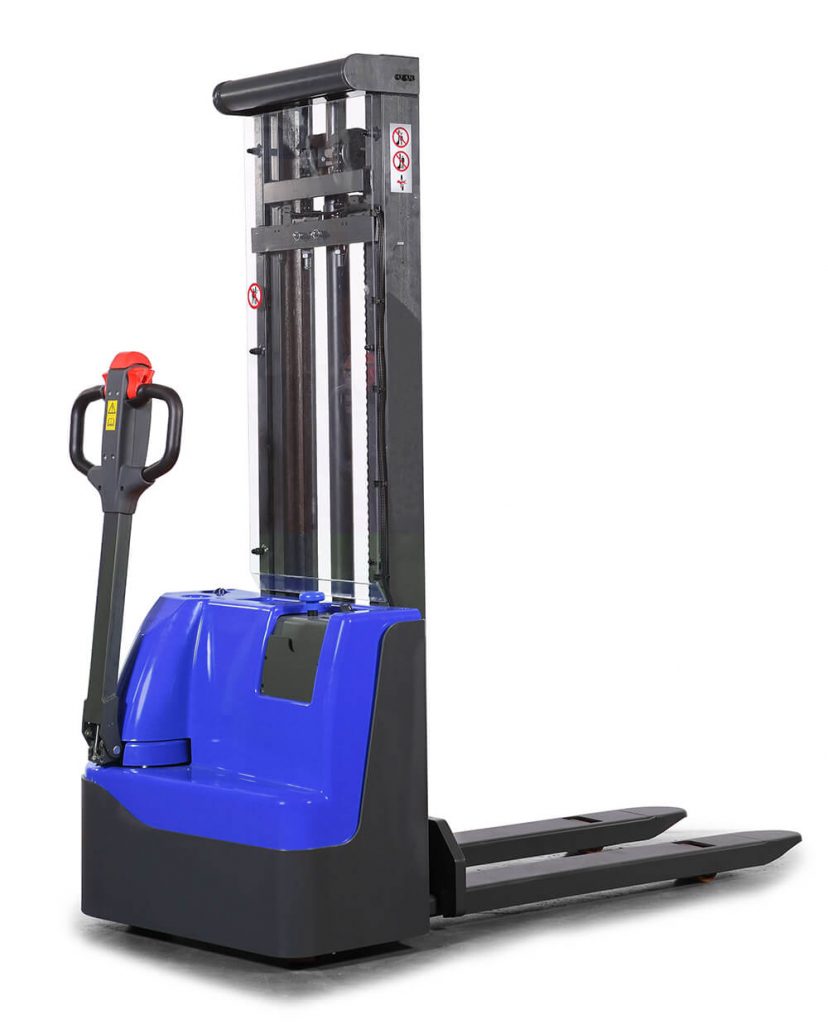

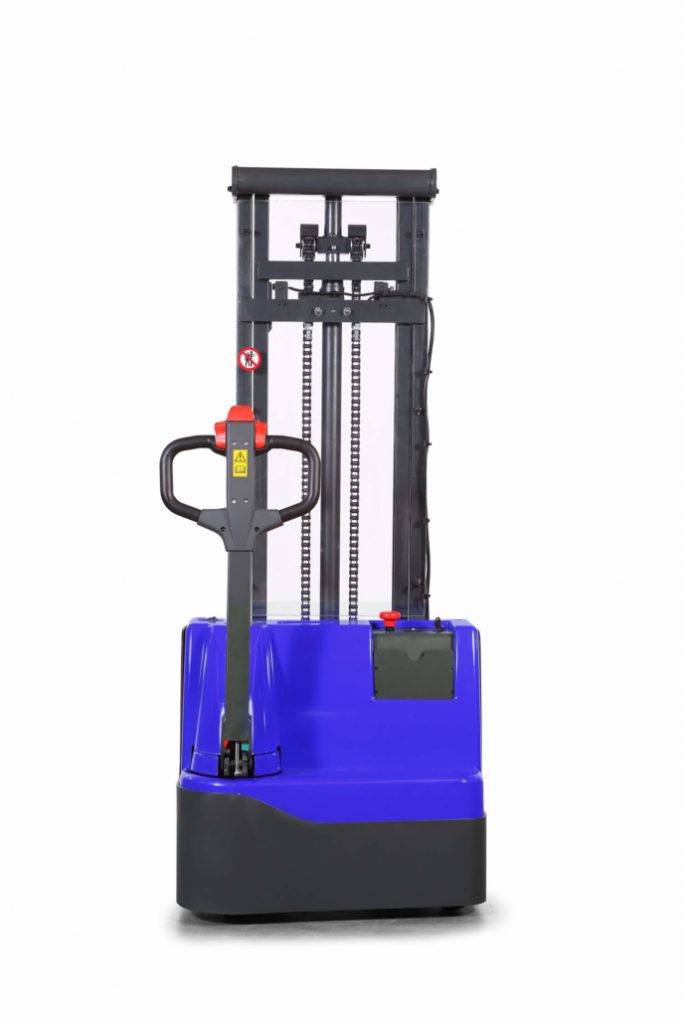

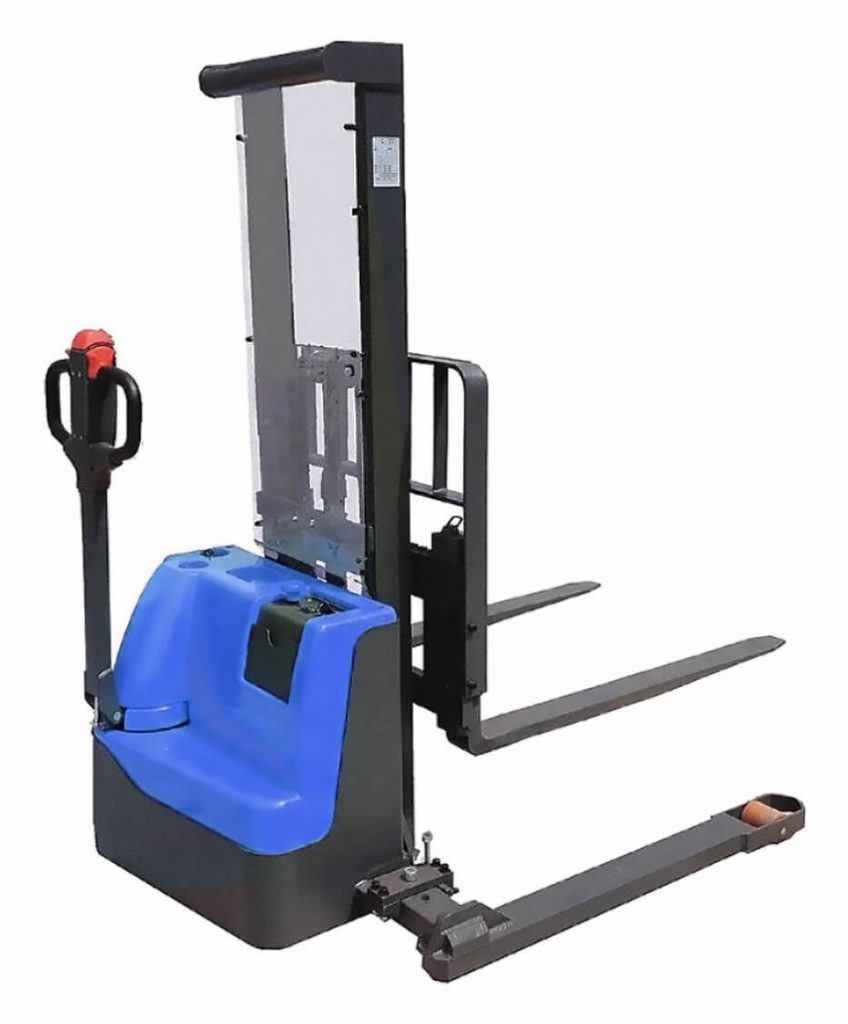

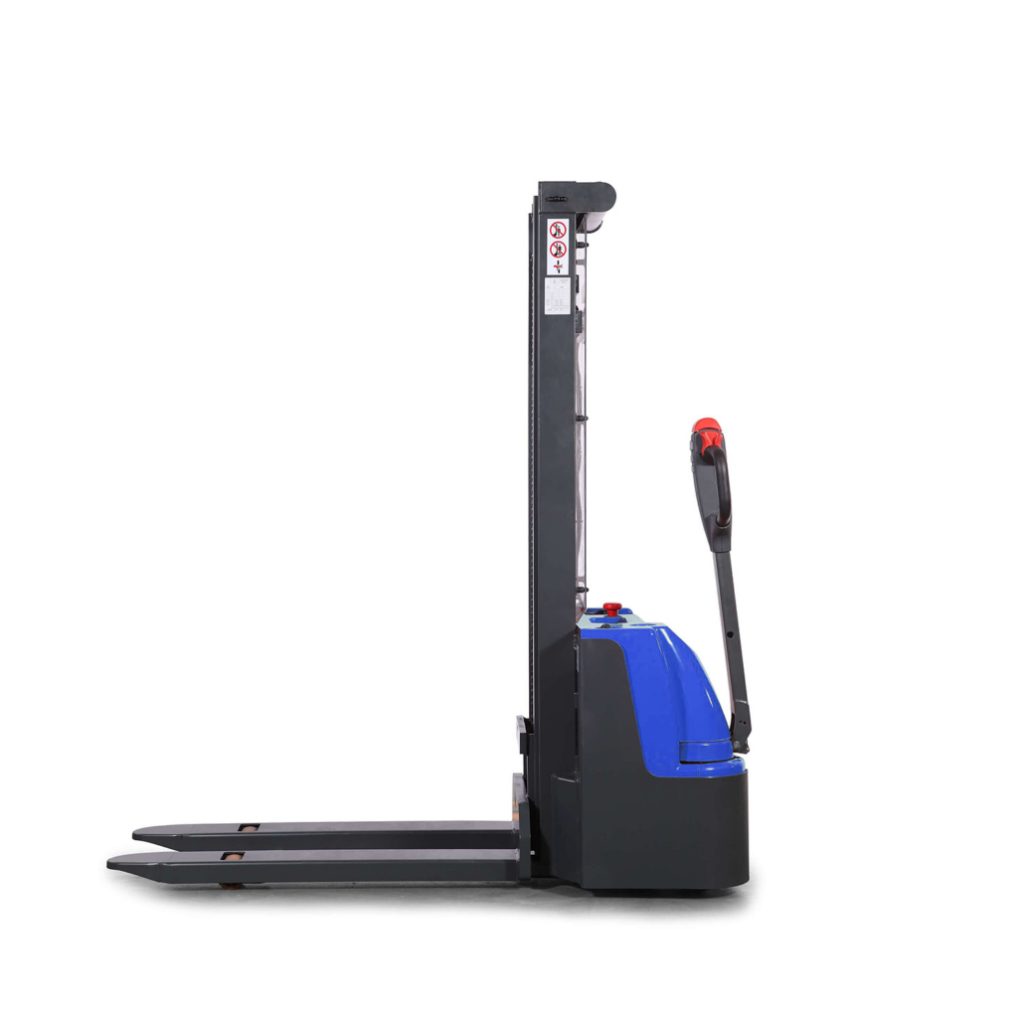

Maclift經濟型電動堆高機1-1.5噸

海獅機械最新引進Maclift經濟型系列電動堆高機(電動堆高車/ Electric stacker/ Electric Pallet Stacker)
出產自專注於提供經濟實惠的倉庫產品品牌Maclift。這款經濟型全電動堆高機採用輕盈機身設計,
讓工作人員在各類狹小的倉庫、貨倉及工作台通道等可以處理輕量型的貨物搬運、堆高等倉庫工作。

HSM presents the latest 堆高機 model - Maclift經濟型電動堆高機1-1.5噸.

HSM presents the latest 堆高機 model - Maclift經濟型電動堆高機1-1.5噸.

堆高機系列選型

  • 負重能力由1至1.5噸
  • 堆高機提升高度由1.6米至3.5米

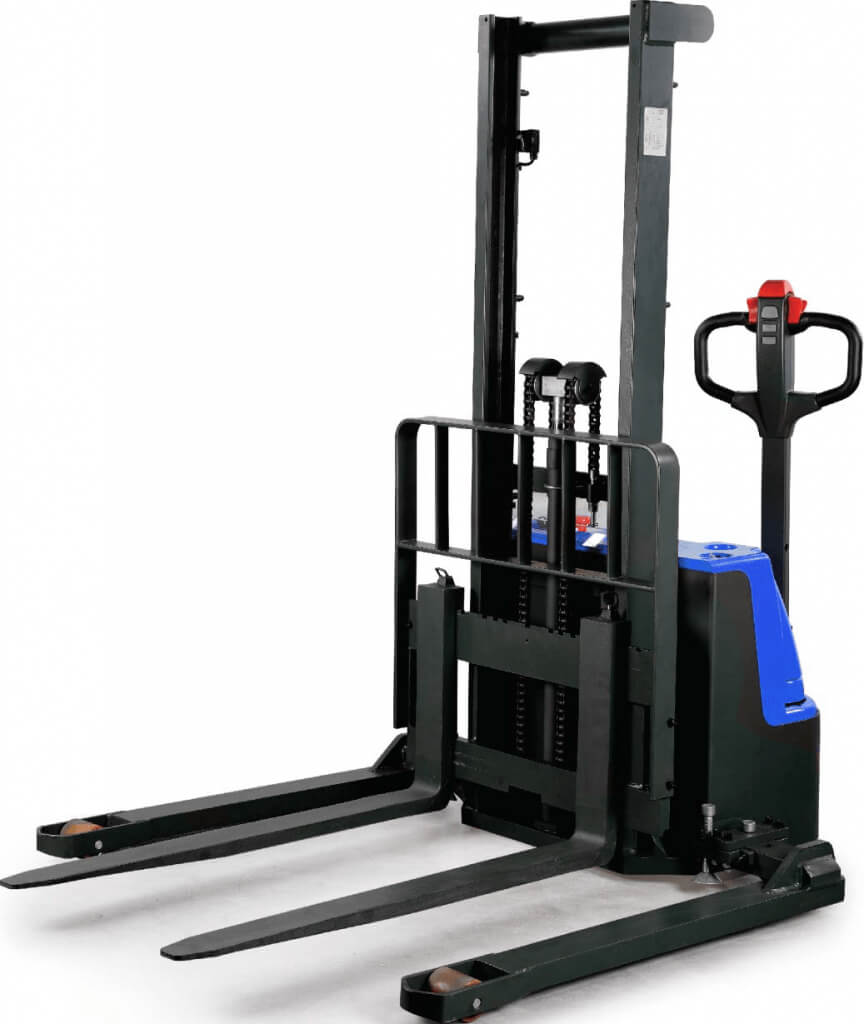

  • 可選跨式底腳以處理雙面卡板
  • 更多堆高機選型可向我們的業務代表查詢

HSM presents the latest 堆高機 model - Maclift經濟型電動堆高機1-1.5噸.

堆高機領先優勢

  • 堅固的結構
  • 電動提升行走:輕鬆完成任務
  • 堆高機採用低重心設計:操作更穩定
  • 內置式充電機:更便利地進行充電
  • 四輪配置行走更穩固
  • 密封式防漏油設計
  • 使用免維護電池
  • 安全停泊制動
  • 低離地距離:避免足踝夾傷

HSM presents the latest 堆高機 model - Maclift經濟型電動堆高機1-1.5噸.

海獅機械的優質服務

  • 我們為您推薦最合適堆高機型號
  • 產品保用承諾
  • 專業強大的售後服務團隊

HSM presents the latest 堆高機 model - Maclift經濟型電動堆高機1-1.5噸.

NMS15E 1600

NMS15E 3600

Drive

Battery

Operator type

Pedestrian

Load Capacity / rated load

Q

kg

1500

Load centre distance

c

mm

600

Load distance ,centre of drive axle to fork

x

mm

770

Wheelbase

y

mm

1258

1283

Service weight

kg

641

782

Axle loading, laden front/rear

kg

677/1464

722/1560

Axle loading, unladen front/rear

kg

446/195

544/238

Tires

Polyurethane (PU)

Tire size,front

Φ x w

mm

Φ210×70

Tire size,rear

Φ x w

mm

Φ80×70

Additional wheels(dimensions)

Φ x w

mm

Φ100×50

Wheels,number front/rear(x=driven wheels)

1x+1/4

Tread, front

b10

mm

557

Tread, rear

b11

mm

410/525

Lowered mast height

h1

mm

1978

2280

Free Lift height

h2

mm

1510

78

Lift

h3

mm

1515

3615

Extended mast height

h4

mm

1985

4005

Height of tiller in drive position min./ max.

h14

mm

710/1245

Height, lowered

h13

mm

85

Overall length

l1

mm

1806

1830

Length to face of forks

l2

mm

656

681

Overall width

b1

mm

820

Fork dimensions

s/e/l

mm

60/180/1150

Distance between fork- arms

b5

mm

570/685

Ground clearance, centre of wheelbase

m2

mm

25

Aisle width for pallets 1000X1200 lengthways

Ast

mm

2293

2317

Aisle width for pallets 800X1200 lengthways

Ast

mm

2237

2261

Turning radius

Wa

mm

1450

1474

Travel speed, laden/ unladen

km/h

4.4/4.7

Lift speed, laden/ unladen

m/s

0.105/0.17

Lowering speed, laden/ unladen

m/s

0.126/0.126

Max. gradeability, laden/ unladen

%

5/10

Service brake

Electromagnetic

Drive motor rating S2 60min

kW

0.75

Lift motor rating at S3 7.5%

kW

2.2

Battery acc. to DIN 43531/ 35/ 36 A, B, C, no

No

Battery voltage, nominal capacity K5

V/Ah

4×12/60

Battery weight

kg

4×20

Energy consumption acc. to VDI cycle

kWh/h

0.5

Type of drive control

DC speed Control

Sound level at driver’s ear acc. to EN 12053

dB(A)

<70

Designation

Lowered mast

height h1 (mm)

Free lift

h2 (mm)

Lift height

h3 (mm)

Extended mast

Height h4 (mm)

Lift h3+h13 (mm)

One stage mast

2378

1910

1915

2385

2000

Two stage mast

1930

78

2815

3305

2900

2080

78

3115

3605

3200

*圖片只供參考,一切以實物為準。
